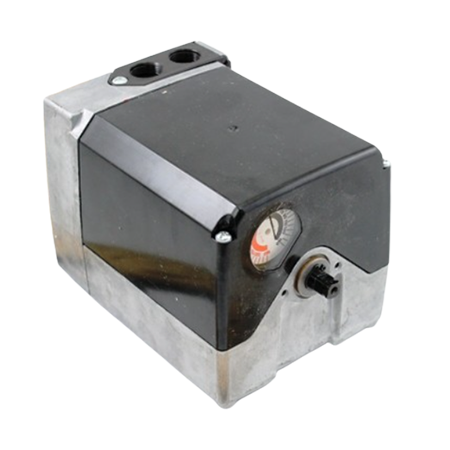

Siemens Combustion SQM50.264R1G4 Reversing Actuator Damper Motor 110V 90lb-in Torque

Name: Siemens Combustion SQM50.264R1G4 Reversing Actuator Damper Motor 110V 90lb-in Torque
Brand: Siemens Building
SKU: SQM50.264R1G4
Price: 1817.08 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Siemens Combustion SQM50.264R1G4 Reversing Actuator Damper Motor 110V 90lb-in Torque

SKU: SQM50.264R1G4

Brand:

Rating:

Quantity	Price	Stock
Ships 5-7 Days Ships 5-7 Days	$1,817.08 /ea	Ships 5-7 Days

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The SQM50.264R1G4 is a reversing actuator that has a power rating of 110V and 4-20 mA. The motor has an 8-second running time for a 90-degree counterclockwise rotation which produces 90 lb-in of torque. UL-listed, CE-approved, and CSA-certified.

The reversing actuator is suitable for any applications that need rotary motion such as the positioning of flow control valves, butterfly valves, and dampers. The unit is designed with two limit switches and up to four internal auxiliary switches that provide precise accuracy.

The SQM50.264R1G4 is easy to install in any position with a reversible motor that allows clockwise or counterclockwise rotation.

Torque	90 lb-in
Running Time	8-second
Rotation	Counterclockwise
Voltage	110V
Amperage	4 - 20 mA
Approvals	UL-listed, CE-marked, CSA-certified

Download Product Information:

Siemens Combustion SQM50.264R1G4 Reversing Actuator Damper Motor Technical Instructions
