Superior Radiant Products CE005 Dsi Module, 915-227

Superior Radiant Products CE005 Dsi Module, 915-227
Images for general purposes only. Actual may be different than depicted.
Superior Radiant Products CE005 Dsi Module, 915-227 Superior Radiant Products CE005 Dsi Module 24V

Superior Radiant Products CE005 Dsi Module, 915-227

SKU: CE005
Rating: (1)
Quantity Price Stock
4
Usually Ships 1 - 2 Weeks
$164.72     /ea
4
0
$0.00
0
$0.00
0
CE005

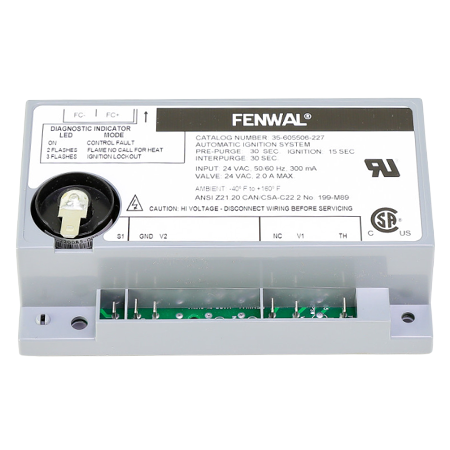

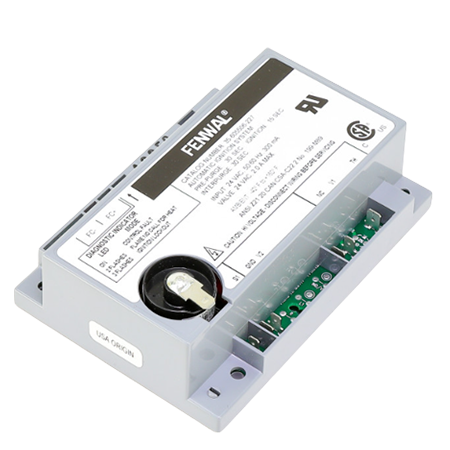

The CE005 is a DSI Module that has an electrical rating of 24V, 300 mA, and 50/60 Hz frequency.  It has a 30-second pre-purge, 15-second ignition, and 30-second interpurge time.  UL-recognized and CSA-certified.

The DSI module is suitable for UA, LA, and UAC Detroit Radiant heater applications.  The unit features a diagnostic LED that indicates the module's current mode to provide quick & easy operation and control.

The CE005 replaces part number CE005C.
Voltage 24V
Frequency 50/60 Hz
Pre-Purge Time 30-second
Ignition Time 15-second
Interpurge 30-second
Ambient Temperature Range -40°F to 160°F
Approvals UL-recognized and CSA-certified
