Taco 435-5 Air Scoop 2-1/2"

Name: Taco 435-5 Air Scoop 2-1/2"
Brand: Taco
SKU: 435-5
Price: 261.30 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Taco 435-5 Air Scoop 2-1/2"

SKU: 435-5

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2-3 Weeks Usually Ships 2-3 Weeks	$261.30 /ea	Usually Ships 2-3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

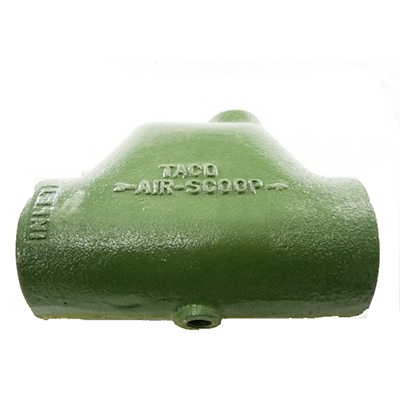

Taco Air Scoop 2.5"

The Taco 435-5 Air Scoop provides an economic way to combine air elimination with a plain steel or diaphragm expansion tank. The Taco Air Scoop is a noiseless, air-free hydronic heating, cooling or combination system solution, efficiently separating the air from the water in any systems. As air travel along a horizontal piping system the lighter air is gathered at the top. The Air Scoop decelerates the air and water velocity so that air bubbles can be easily removed by the interior baffles and directed to Hy-Vent to vent the air, or sent to a connected expansion tank.

Features:

One Piece Cast Iron Construction
Engineered Baffle to Separate Air from Water
Never Requires any Servicing

Maximum Operating Pressure	125 PSI (862 kPa)
Maximum Operating Temperature	300F (135C)
Media	Water or Water/Glycol
Recommended Flow Rate	4ft per second
Maximum Flow Rate	8ft per second

Download Product Information:

Taco Air Scoop Catalog Page
