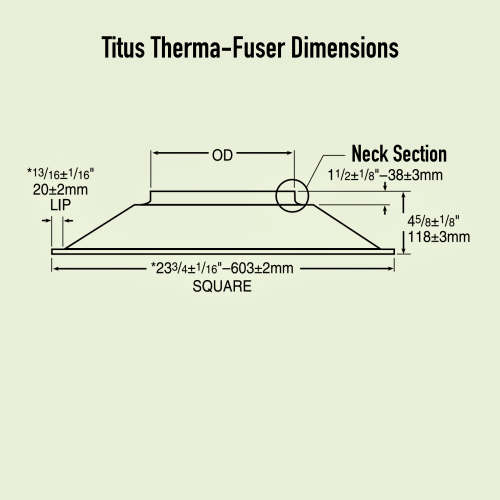

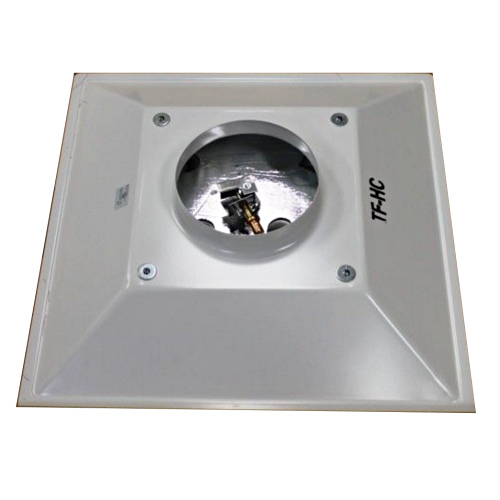

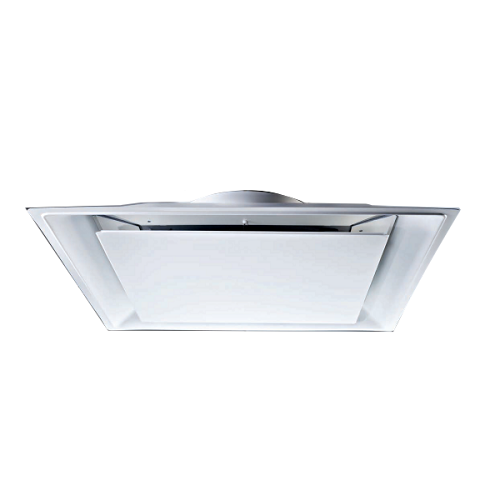

Titus Acutherm Variable Air Volume is a 24" x 24" (600 mm) square ceiling diffuser with an 8" size inlet. This Therma-Fuser has built-in temperature controls and a VAV damper. The VAV heating and VAV cooling setpoints of TF-HC are separate.
Model TF Therma-Fuser diffusers four-blade dampers move up to close and down to open, metering air flow (warm or cool) into the room in response to room temperature. The dampers are mechanically positioned by thermostat/actuators which are both a room thermostat and damper motor.
Features:
| Inlet Static Pressure In. wg | Maximum Flow cfm | Maximum Flow Throw | 25% Maximum Flow | ||
| Throw - Feet* @ vt=50/100/150FPM | NC | Throw* - Feet @ vt=50/100/150FPM | NC | ||
| .05 | 160 | 8/6/4 | <15 | 5/3/2 | <15 |
| .10 | 225 | 10/7/5 | 20 | 6/4/3 | 16 |
| .13 | 255 | 11/8/6 | 23 | 7/5/3 | 19 |
| .15 | 275 | 11/8/6 | 25 | 7/5/3 | 21 |
| .20 | 320 | 12/9/7 | 30 | 8/6/4 | 25 |
| .25 | 355 | 13/10/8 | 34 | 9/6/4 | 28 |
| Dimension Size | 24" x 24" |
|---|---|
| Inlet Diameter | 8" |
Download Product Information:
Acutherm TF Therma-Fuser Thermally Powered VAV Diffuser Technical Datasheet
