Trane MOT18698 ECM Outdoor Motor 1/3 HP 230V and Module

Name: Trane MOT18698 ECM Outdoor Motor 1/3 HP 230V and Module
Brand: Trane
SKU: MOT18698
Price: 827.15 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT18698 ECM Outdoor Motor 1/3 HP 230V and Module

SKU: MOT18698

UNSPSC: 26101105

Brand:

Rating:

Quantity	Price	Stock
42 Usually Ships 2 - 4 Weeks	$827.15 /ea	42

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

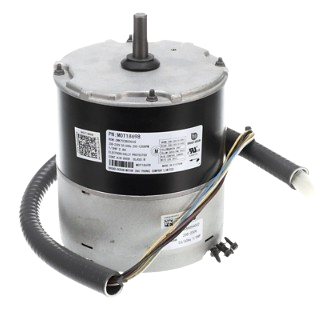

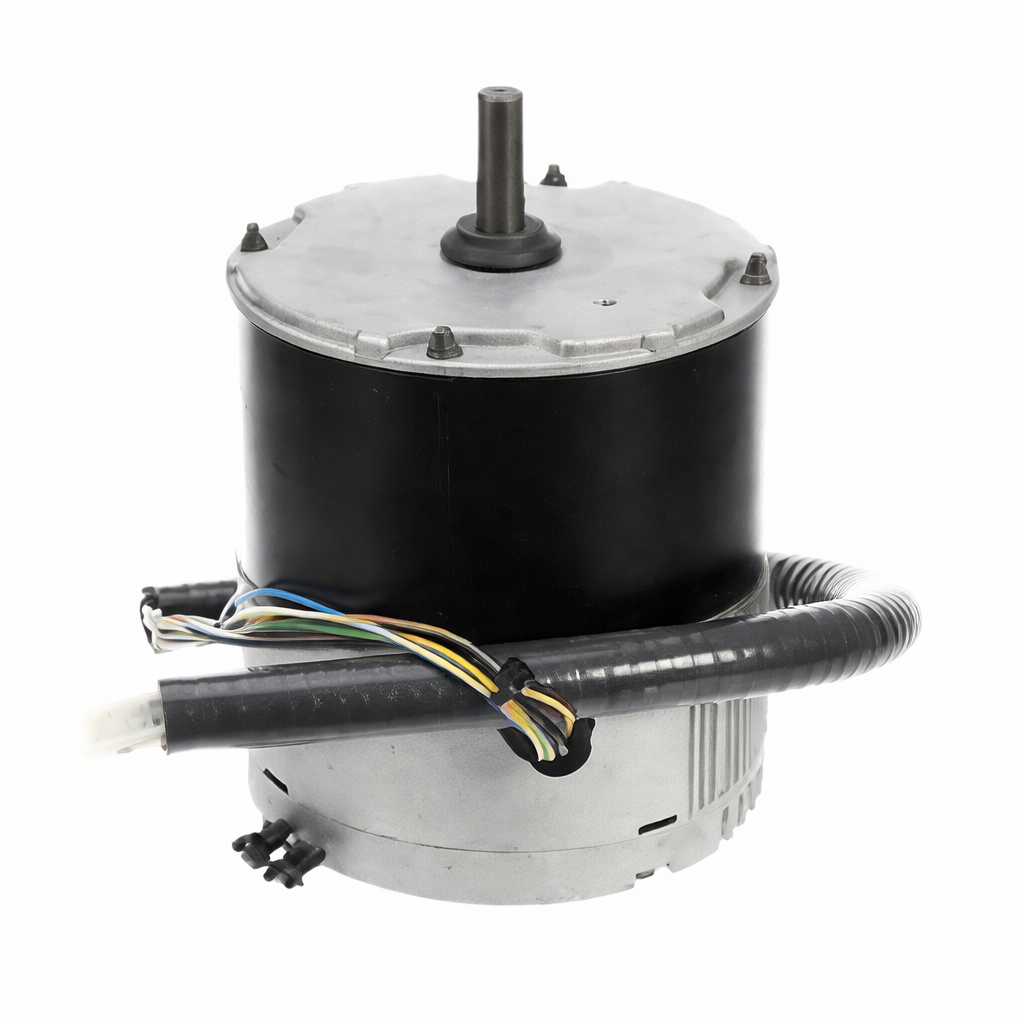

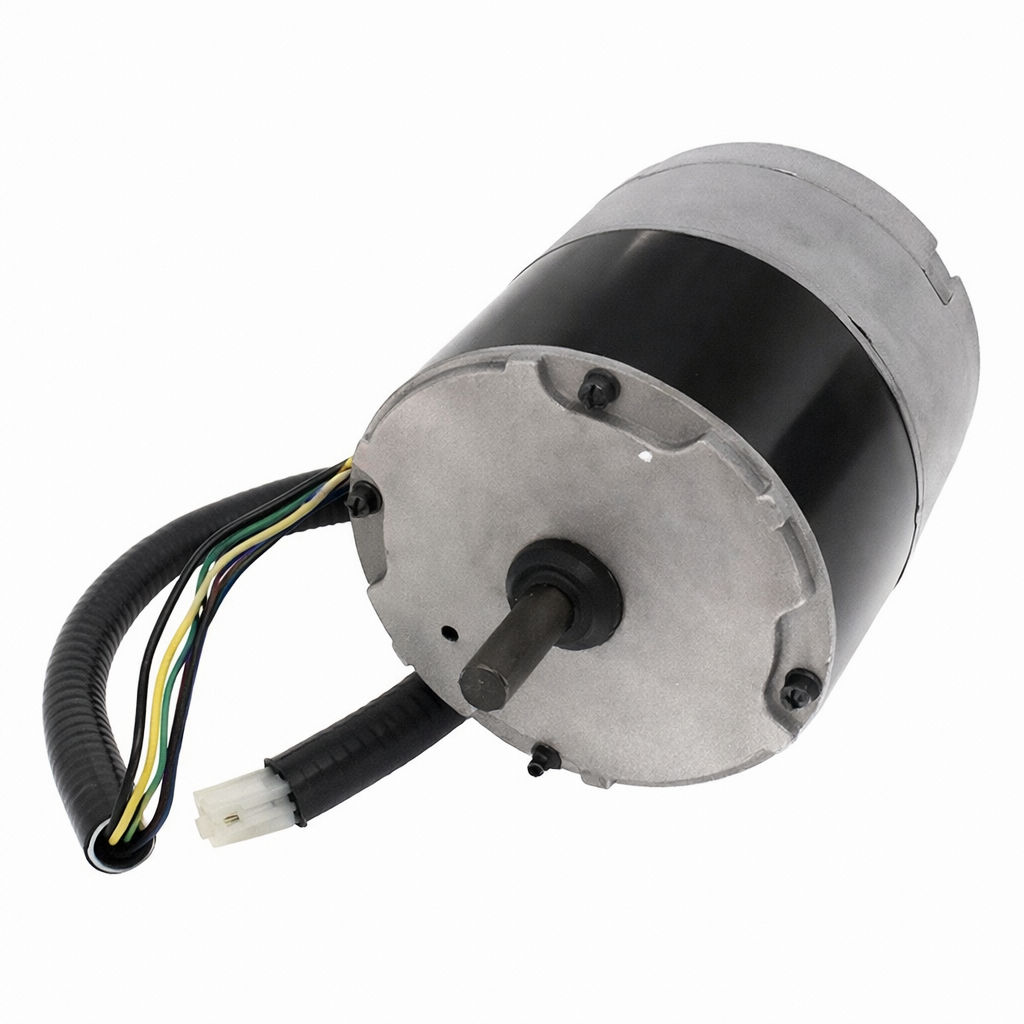

Trane MOT18698 is an OEM electronically commutated (ECM) outdoor condenser fan motor assembly designed for high-efficiency Trane air conditioning and heat pump systems using common refrigerant gases such as R410A or R22.

This 1/3 HP, 208 – 230V, 50/60 Hz motor with integrated control module delivers variable-speed operation from roughly 200 to 1200 RPM, allowing the condensing unit to match airflow to load for quieter starts, reduced energy use, and improved comfort.

Ideal for restoring performance when an outdoor fan fails
Helps maintain proper refrigerant pressures
Protects the compressor from overheating and stress
Keeps condenser coil temperatures under control
Supports longer system life
Helps maintain stable cooling capacity
Contributes to lower operating costs on residential and light commercial HVAC equipment that specifies Trane MOT18698

MOT18698 directly replaces Trane MOT14342 and uses electronically protected Class B windings with a continuous air-over design for reliable performance in harsh outdoor conditions.

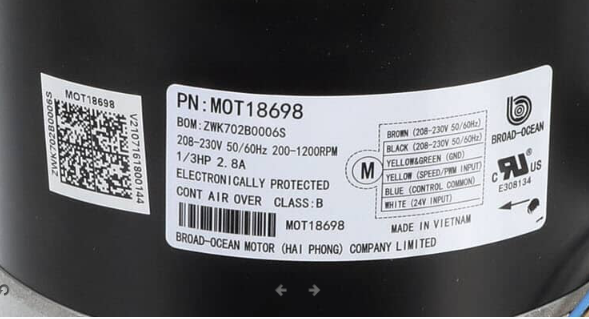

The pre-wired harness with color-coded leads (line power, ground, 24V control, PWM speed input, and common) makes plug-in replacement of the original MOT18698 / Broad-Ocean ZWK702B00006S motor quick and straightforward in compatible Trane outdoor units, such as:

4A6H5042N1000AA	4A6H5048N1000AA	M4HP6030A1000AA
4TWR5060H1000AB	4A6H4048N1000AA	4TTR6048N1000AA
4TWR6042H1000AC	4TWR6048H1000AC	M4AC6048A1000AA
4TWR6042H1000AD	4TWR4042N1000AA	4A6H6042H1000AD
4TWR4048N1000AA	4TWX8060A1000EA	4TTR4019N1000AA
4TWR5042N1000AA	4A7A6048N1000AA	4TWX6042H1000BC
4A6H5060H1000AB	4TWX5060N1000AA	4TWR5048N1000AA
4TWR5060N1000AA	4A6H4042N1000AA	4TTX6061J1000BA
4A6H4060N1000AA	M4HP6036A1000AA	M4HP6024A1000AA
4TTX7048E1000AA	4TWX5042N1000AA	4TWR4060N1000AA
M4HP6060A1000AB	4TWR6060H1000AC	4TTX6061J1000CA
4TTR4025N1000AA	4A6H5060N1000AA

Enclosure Type	Totally Enclosed Air-Over
Mounting Type	Screw/Vertical Shaft Down
Frame	48
Number of Speeds	2
Phase	1
Rotation	Counter-Clockwise Lead End
Approvals	UL Recognized
Voltage	208-230V
Hetz	50/60 Hz
Power Rating	1/3 HP
