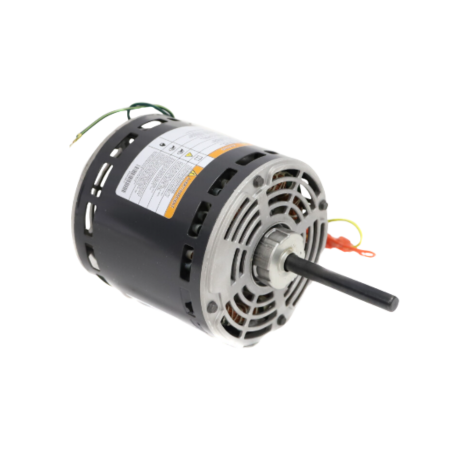

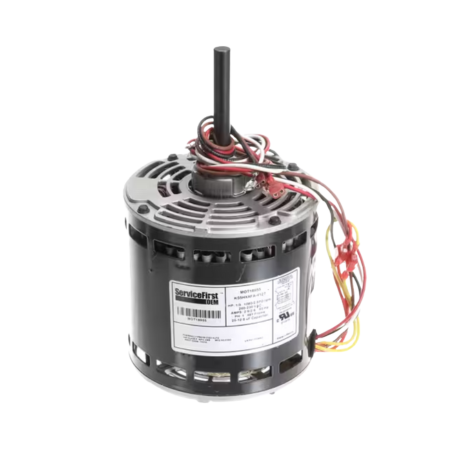

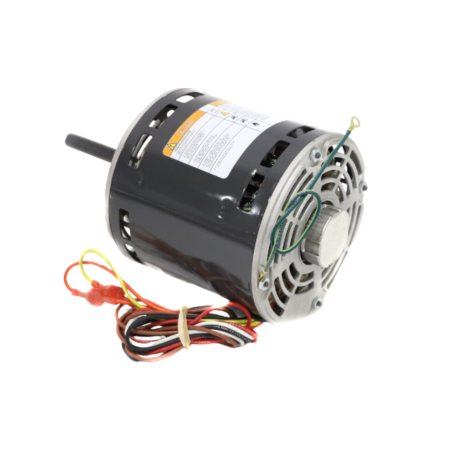

Trane MOT18955 Blower Motor Single Phase 2 Speed 1/3 HP 200/230V 1080 RPM

Name: Trane MOT18955 Blower Motor Single Phase 2 Speed 1/3 HP 200/230V 1080 RPM
Brand: Trane
SKU: MOT18955
Price: 753.32 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT18955 Blower Motor Single Phase 2 Speed 1/3 HP 200/230V 1080 RPM

SKU: MOT18955

UNSPSC: 26101400

Brand:

Rating:

Quantity	Price	Stock
9 Usually Ships 2 - 4 Weeks	$753.32 /ea	9

Add to Cart

Add to Wishlist

The MOT18955 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT4102 Motor 1/3 HP 200-230V 1080 RPM	MOT4102 Brand Trane

Add to Cart

Add to Wishlist

The Trane MOT18955 is a single-phase blower motor that operates at 1/3 HP, 200-230V, and 60 Hz power rating. UL Recognized for safety compliance.

This 2-speed motor features a 0.5" diameter x 3.5" length shaft and rotates at 1080 RPM in both clockwise and counterclockwise directions. It is built with a 48Y frame, open air over enclosure, Class F insulation, and automatic thermal protection.

The MOT18955 directly replaces the MOT4102 motor. A mounting bracket (KIT1052 belly band kit) is required for installation, and it is compatible with RNG02600 if needed.

Note: A new capacitor may be required; use a 25 MFD/370 VAC capacitor for 200V applications and 12.5 MFD/370 VAC for 230V.

Ambient Temperature	40°C
Voltage	200-230V
Horsepower	1/3 HP
Frequency	60 Hz
Amperage	2.9/2.6A
Rotation Speed	1080 RPM
Motor Speed	2-Speed
Number of Phase	Single-Phase
Frame Size	48Y-Frame
Capacitor	25-12.5uF
