Trane MOT18985 Blower Motor 1-Phase 1/2 HP 380-415/460V 60 Hz 700/850 RPM 2-Speed

Trane MOT18985 Blower Motor 1-Phase 1/2 HP 380-415/460V 60 Hz 700/850 RPM 2-Speed
Images for general purposes only. Actual may be different than depicted.
Trane MOT18985 Blower Motor 1-Phase 1/2 HP 380-415/460V 60 Hz 700/850 RPM 2-Speed Trane MOT18985 Blower Motor 1-Phase 1/2 HP 380-415/460V 60 Hz Trane MOT18985 Blower Motor 1-Phase 1/2 HP 380-415/460V 60 Hz 700/850 RPM 2-Speed

Trane MOT18985 Blower Motor 1-Phase 1/2 HP 380-415/460V 60 Hz 700/850 RPM 2-Speed

SKU: MOT18985
UNSPSC: 26101400
Rating:
Quantity Price Stock
12
Usually Ships 2 - 4 Weeks
$609.75     /ea
12

The MOT18985 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Trane MOT4741 Motor 1/2 HP 460V 850RPM MOT4741

Brand Trane
Trane MOT4741 Motor 1/2 HP 460V 850RPM
0
$0.00
0
$0.00
0
MOT18985

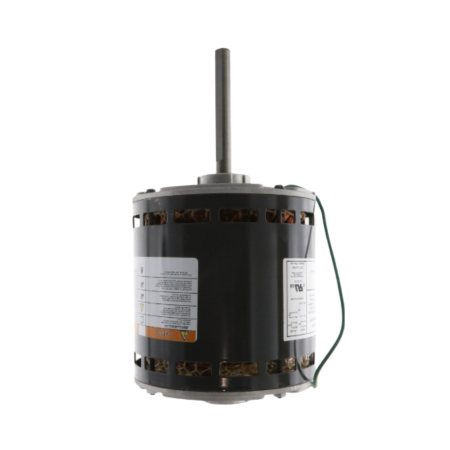

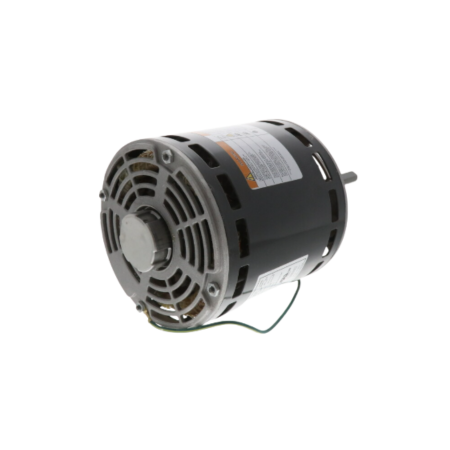

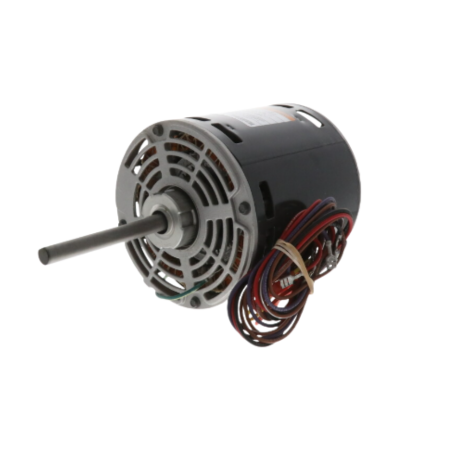

The Trane MOT18985 is a single-phase blower motor rated at 1/2 HP, 380–415/460V, and 60 Hz.  UL Recognized for safety compliance.

This motor features a 0.5” diameter x 4” length shaft that rotates at 700/850 RPM in both clockwise and counterclockwise directions with 2-speed capability.

A direct replacement for the MOT4741 motor.  It is designed with a 48-frame, open-air over (OAO) enclosure and requires belly band mounting.

Note:  Some units may have a misprint on the label indicating use as a condenser fan motor.
Horsepower 1/2 HP
Frequency 60 Hz
Voltage 380-415/460V
Number of Phase Single-Phase
Rotation Speed 700/850 RPM
Rotation Direction CW/CCW
Motor Speed 2-Speed
Frame Size 48-Frame
Enclosure Type Open Air Over
Mounting Type Belly Band
