Trane MOT19003 Motor Single-Phase 1/30 HP 115 V 850 RPM 3-Speed

Name: Trane MOT19003 Motor Single-Phase 1/30 HP 115 V 850 RPM 3-Speed
Brand: Trane
SKU: MOT19003
Price: 510.10 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT19003 Motor Single-Phase 1/30 HP 115 V 850 RPM 3-Speed

SKU: MOT19003

UNSPSC: 26101116

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Weeks	$510.10 /ea	1

Add to Cart

Add to Wishlist

The MOT19003 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT3588 Motor 1/30 HP 115V 700RPM 3-Speed	MOT3588 Brand Trane

Add to Cart

Add to Wishlist

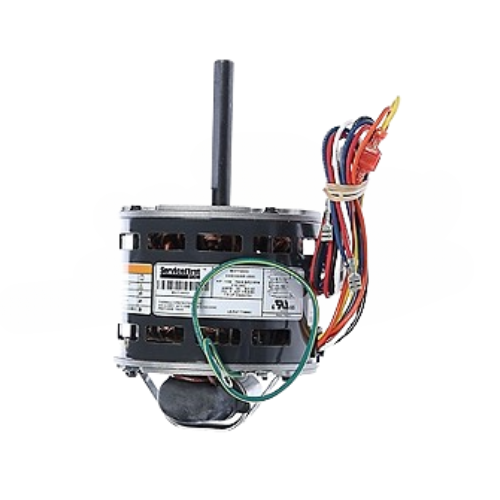

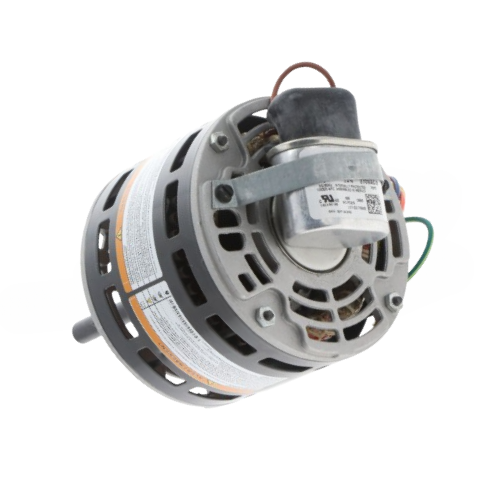

The Trane MOT19003 is an OEM permanent split capacitor motor with a power rating of 1/30 HP and 115 V.

The motor runs at three speeds with a rotation speed of 700 RPM and supports both clockwise (CW) and counterclockwise (CCW) rotation.

The motor features a 48-frame, an open air-over enclosure, and a 3.5-inch-long shaft. For installation, the Trane KIT2411 Belly Band Direct Drive Blower Mounting Ring Kit.

The MOT19003 directly replaces Trane MOT3588 Motor.

Rotation	Clockwise, Counter Clockwise
Rotation Speed	700 RPM
Voltage	115 V
Approval	UL Recognized
Shaft Length	3.5 Inches
Horsepower	1/30 HP
Mounting Type	Belly Band
Motor Enclosure Type	Open Air Over
Number of Speeds	3
Phase	1
