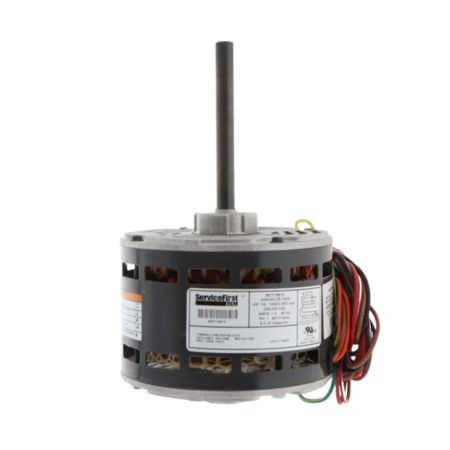

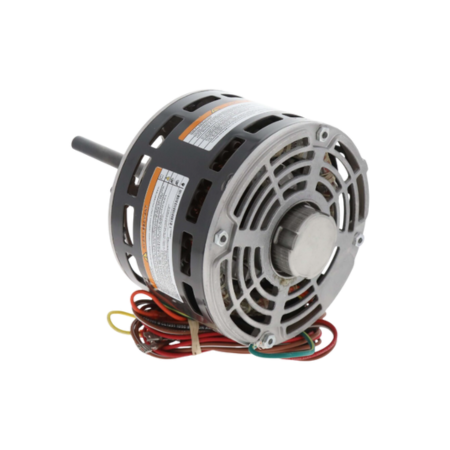

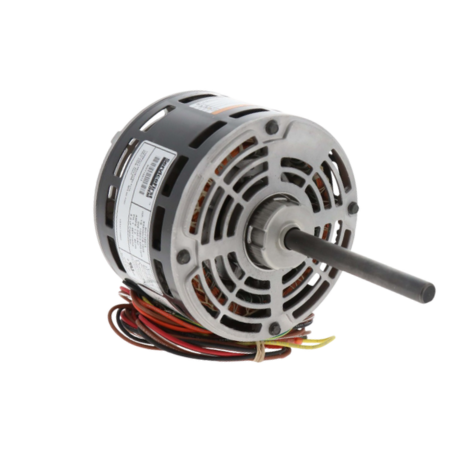

Trane MOT19613 Direct Drive Blower Motor 1-Phase 1/8 HP 208-230V 1080 RPM 2-Speed

Name: Trane MOT19613 Direct Drive Blower Motor 1-Phase 1/8 HP 208-230V 1080 RPM 2-Speed
Brand: Trane
SKU: MOT19613
Price: 312.40 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT19613 Direct Drive Blower Motor 1-Phase 1/8 HP 208-230V 1080 RPM 2-Speed

SKU: MOT19613

UNSPSC: 26101400

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 2 - 4 Weeks	$312.40 /ea	3

Add to Cart

Add to Wishlist

The MOT19613 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT7219 Motor 1/8 HP 208-230V 1080 RPM	MOT7219 Brand Trane

Add to Cart

Add to Wishlist

The Trane MOT19613 is a single-phase direct-drive blower motor rated at 1/8 HP, 208-230V, and 60 Hz. Features a 1/2" diameter x 4.5" length shaft that operates at 1080 RPM in a reversible direction at 2 speeds. UL Recognized for safety compliance.

This motor comes in a 48Y frame size with Class F insulation, designed to withstand ambient temperatures up to 40°C. Built with an Open Air Over (OAO) enclosure, permanent split capacitor (PSC) design, and automatic thermal protection.

It is a direct replacement for Trane MOT7219 and is belly band-mounted for secure installation.

Insulation Class	Class F
Rotation Direction	Reversible
Horsepower	1/8 HP
Frequency	60 Hz
Voltage	208-230V
Number of Phase	Single-Phase
Motor Speed	2-Speed
Rotation Speed	1080 RPM
Enclosure Type	Open Air Over
Mounting Type	Belly Band
