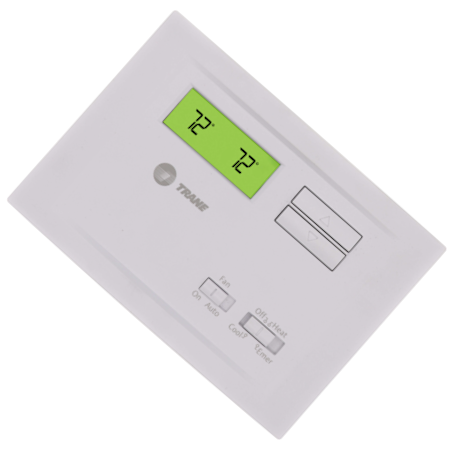

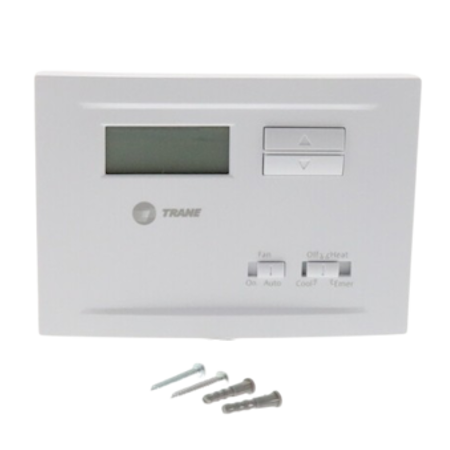

The Trane TCONT103AN21HA is a non-programmable thermostat designed to manage heat pump systems with up to two stages of heating and one stage of cooling. It ensures precise temperature control in residential and commercial settings.
Key Features:
System Compatibility: Supports 2 Heat/1 Cool configurations, suitable for gas, oil, and electric systems.
User Interface: Features a digital display for clear temperature readings and system status.
Operational Modes: Offers Heat, Off, Cool, and Emergency Heat modes, along with Auto and On fan settings.
Protective Functions: Includes a five-minute time delay for compressor protection to enhance system longevity.
Maintenance Alerts: Provides a filter change reminder to help maintain optimal system performance.
Changeover Capability: Automatically switches between heating and cooling modes as needed.
This thermostat serves as a direct replacement for previous models such as TCONT401AN21MA, TCONT401AN21MAA, XR401, and ACONT401AN21MA.
| Input Power (AC) | 20-30 VAC |
|---|---|
| Frequency | 50/60 Hz |
| Maximum Number of Stages | 2-Heat/1-Cool |
| Operating Humidity | 32°F to 105°F (0 to +41°C) |
| Humidity | 90% RH Non Condensing |
| Input Power (DC) | Two 1.5V AAA Alkaline |
| System Modes | Heating, Cooling, Off, Emergency Heat |
| Fan Modes | Auto, On |
| Indoor Temperature Display Range | 45°F to 90°F |
| Wire Usage | 18 AWG |
Download Product Information:
Trane TCONT103AN21HA Heat Pump Thermostat Installation Guide
