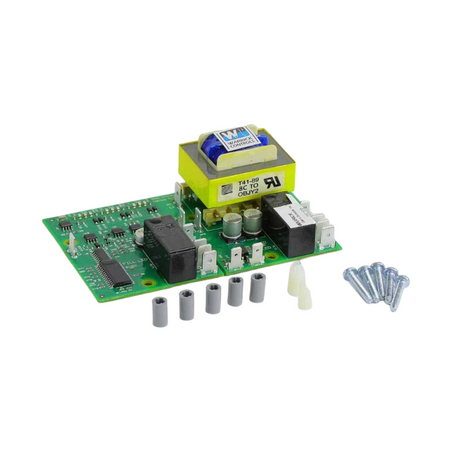

The Warrick DFC1C0 is a dual-function level control that operates at 120V with 26,000 Ohm sensitivity. This device has one normally open and one normally closed contact design. UL Recognized.
This is a relay output control with direct-acting mode operation. It is designed to control two independent level functions, one single-level control operation, and one differential-level operation.
The Series DF is suitable for the following applications:
| Mode of Operation | Direct Acting |
|---|---|
| Control Style | Open-Board (No Housing) |
| Voltage | 120V |
| Sensitivity | 26,000 Ohm |
| Terminal Style | Spade Connection |
| Standoff Style | Screw Mount |
| Approval | UL Recognized |
| Ambient Temperature Range | -40 to +150°F (-40 to +65°C) |
| Contact Design | 1 Normally Open and 1 Normally Closed |
| Contact Rating | 10 Amp Resistive 1/3 hp |
