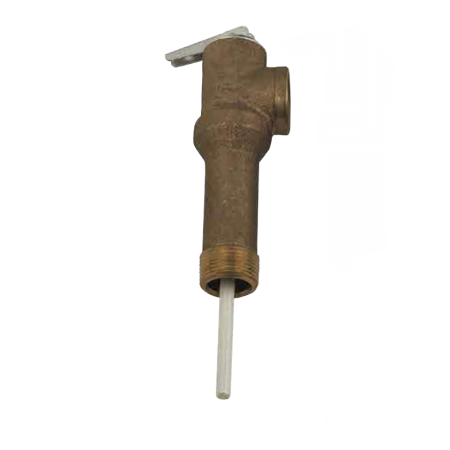

Watts Series LLL100XL Extended Shank Temperature and Pressure Relief Valves
Series LLL100XL Extended Shank Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature an extended shank for installation on water heaters with extra thick insulation as well as a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model SL100XL is suitable for water heaters with up to 1-3/4 in. (45mm) of insulation. Model LLL100XL is suitable for water heaters with up to 3 in. (76mm) of insulation. Series LLL100XL are ASME rated and CSA listed. Temperature Relief: 210°F (99°C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Features:
Model LLL100XL Extra extended inlet model. Suitable for water heaters with up to 3" (76mm) of insulation
Thermostats with special protective coating
All brass body
Stainless steel spring
Thermostat is accurate and proven. Exclusively designed and manufactured by Watts
