Watts Series LF957RPDA Reduced Pressure Detector Assembly

Series LF957RPDA, LF957NRPDA, LF957ZRPDA Reduced Pressure Detector Assemblies provide protection to the potable water system from contamination in accordance with national plumbing codes. The LF957RPDA, LF957NRPDA, LF957ZRPDA are normally used in health hazard applications to protect against backsiphonage and backpressure. The Watts LF957RPDA, LF957NRPDA, LF957ZRPDA are used to monitor unauthorized use of water from the fire protection system. They feature Lead Free construction to comply with Lead Free* installation requirements.

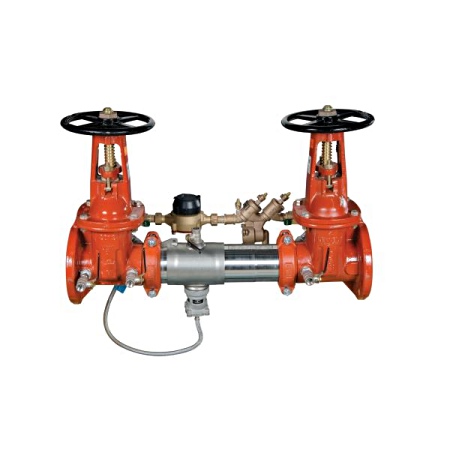

This 0122722 6 inch reduced pressure detector assembly consists of a compact, stainless steel body with stainless steel internal parts, two check valves, a pressure-differential relief valve, Osy shutoff valves, torsion spring checks and relief valve, and bronze nickel plated test cocks. Maximum working pressure is 175 psi (12.1 bar).

Features:


• Lead Free construction
• Extremely compact design
• 70% lighter than traditional designs
• 304 (Schedule 40) stainless steel housing & sleeve
• Groove fittings allow integral pipeline adjustment
• Patented torsion spring check provides lowest pressure loss
• Unmatched ease of serviceability
• Replaceable check disc rubber
• Available with grooved butterfly valve shutoffs
• Bottom mounted cast stainless steel relief valve
• Metered bypass to detect leakage or theft of water from the fire sprinkler system
