Watts Series LFB6800 Lead Free 3-Piece Full Port Ball Valves

Series LFB6800 3-Piece, Full Port, Lead Free Ball Valves feature an in-line maintenance design that offers serviceability of all operating parts without disturbing the rigid pipeline system. The LFB6800 full port orifice ensures maximum flow capacity, while Durafill® seats, stainless steel ball and stem provide maximum safety and highest operating pressure and temperature limits. The LFB6800 features Lead Free construction to comply with Lead Free installation requirements.

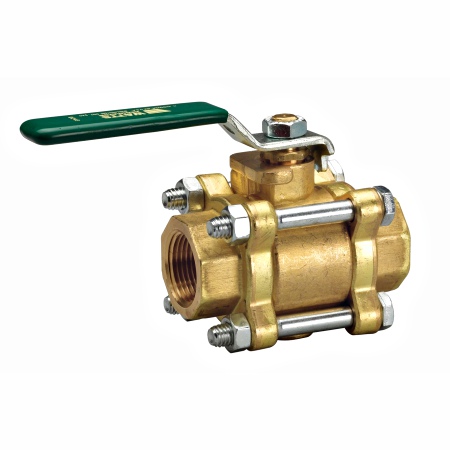

This 0123231 1 inch lead free full port ball valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill (R) seat, chrome plated lead free brass ball, and blow-out proof stem to provide safety and high operating pressure/temperature limits.

Features:

• Lead Free copper silicon alloy body
• 3-piece, lift-out design
• Carbon/glass reinforced PTFE Durafill valve seats
• Stainless steel ball and stem
• Blow-out proof, pressure retaining stem
• Standard actuator mounting pads
• Vinyl insulator on heavy duty, zinc plated carbon steel handles
• Low operating torque
• Adjustable stem packing gland
• Each valve factory tested
