Weil McLain 381-356-499 Inducer Fan Assembly Kit for CGI/CGS Boilers

Name: Weil McLain 381-356-499 Inducer Fan Assembly Kit for CGI/CGS Boilers
Brand: Weil-Mclain
SKU: 381-356-499
Price: 647.02 USD
Availability: InStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

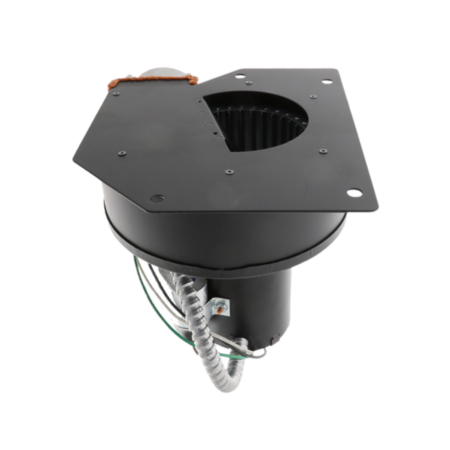

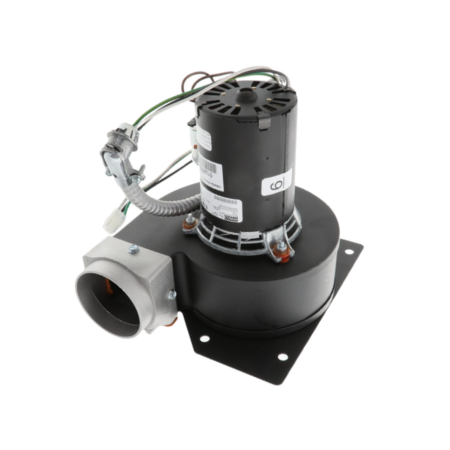

Weil McLain 381-356-499 Inducer Fan Assembly Kit for CGI/CGS Boilers

SKU: 381-356-499

UNSPSC: 40100000 Tariff HS Code: 8501104040

Brand:

Rating: (1)

Quantity	Price	Stock
23 Usually Ships 2 - 4 Weeks	$647.02 /ea	23

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Weil McLain 381-356-499 is an inducer fan assembly kit that operates at 1.2A, 115V, and 60 Hz electrical ratings with 3450 RPM rotation speed. It is UL-recognized and CSA-certified for safety and reliability.

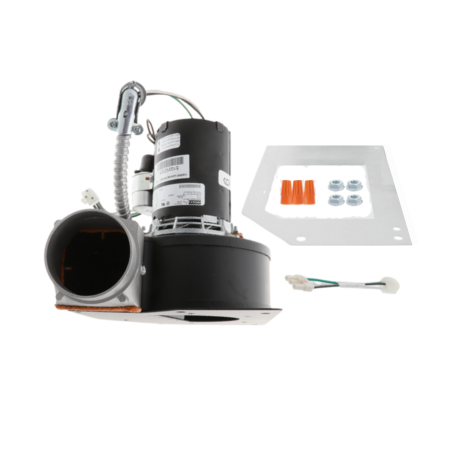

Kit Inclusions

4 (Four) Nuts
510-312-176 Draft Inducer Assembly
590-317-627 Inducer Gasket
591-391-980 Wiring Harness

Designed to manage airflow in heating systems efficiently, it ensures proper ventilation and combustion, playing a crucial role in safely expelling combustion gases to prevent buildup and improve overall efficiency.

The 381-356-499 is a direct replacement for the Weil McLain 510-312-201 blower assembly. It is suitable with the following CGS Series 1 and CGI Series 2 boiler model numbers:

CGI-25
CGI-4
CGI-6
CGI-8
CGS-4
CGS-5

CGI-3
CGI-5
CGI-7
CGS-3
CGS-4E
CGS-6

Approvals	UL-recognized and CSA-certified
Frequency	60 Hz
Rotation Speed	3450 RPM
Amperage	1.2A
Voltage	115V
Applications	Boilers
Compatible Series	CGS Series 1 and CGI Series 2
Product TYpe	Inducer Fan Assembly

Write a Review

By Thomas

from Boissevain MB

Yes, I would recommend this product to a friend or co-worker

5.0 Draft inducer

This product was good quality, great shipping time and product installed w no hiccups
