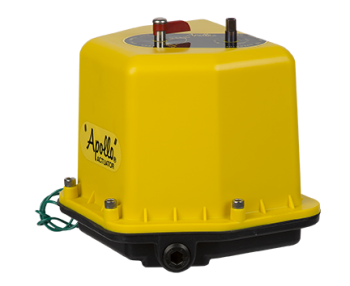

Ruggedly built and designed for easy installation, new Apollo® AE Series electric actuators deliver the most standard features and performance in their class. Now CSA listed all sizes as standard.
Five Output Torques, One Housing
• 200, 400, 600, 800 and 1,000 inch-pounds
• Long Service Life
• Newly developed anodized die cast aluminum housing
• Fiberglass reinforced nylon cover resists corrosion
• Nitrile gasket and seals cover all penetration points in housing and cover
• Precision cut and heat treated alloy spur gears
• Permanently lubricated enclosed gear train
• NEMA 4, 4X
Easy To Use
• Two separate 1/2” NPT conduit entrances for easier wiring and signal separation
• 12-position pre-wired terminal strip includes standard connections for remote open/closed position indicators; lots of room for wiring options
• Unrestricted mounting orientation
• Built-in thermal overload protection in all AC motor actuators
• Limit switches have an 11 amp rating at 115 VAC
• High visibility valve position indicator standard on all models
