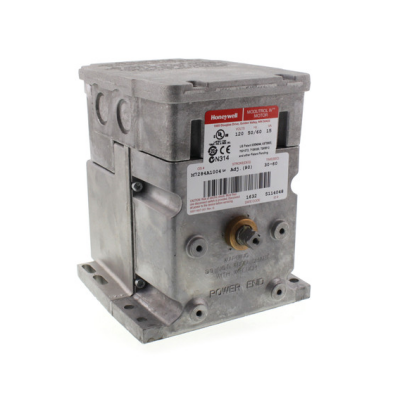

Honeywell M7284A1004 Modutrol IV Motor

Honeywell M7284A1004 Modutrol IV Motor
Images for general purposes only. Actual may be different than depicted.
Honeywell M7284A1004 Modutrol IV Motor

Honeywell M7284A1004 Modutrol IV Motor

SKU: M7284A1004
In Stock 24
Rating:
$677.62 /ea
Qty of 3 - $662.10 /ea
Qty of 5 - $646.52 /ea
0
$0.00
0
$0.00
0

Honeywell M7284A1004 Modutrol IV Motor

The Series 72 Modutrol IV Motors spring return and non-spring return motors are used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.


Features:

Replaces M734H,J,; M744S,T,Y; and M745L,S,T,Y Motors.
• M7164, M7261, M7284, and M7294 are non-spring return motors; M7282, M7285, M7286 and M7685 are spring return motors.
• Integral spring return returns motor to normal position when power is interrupted.
• Integral junction box provides NEMA 3 weather protection.
• Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is available.
• Adapter bracket for matching shaft height of older motors is available.
• Most motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Integral auxiliary switches are available factory mounted, or can be field added.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). Other timings available.
• Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications.
• All models have dual shafts (slotted and tapped on both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or normally closed valves and dampers.
• Models available with adjustable start (zero) and span.
• Models available with 4 to 20 mA input signal.
• Models available with 2 to 10 Vdc input signal.

Application Electric
Dimensions 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Frequency 50 Hz, 60 Hz
Power Consumption Driving 15 VA
Temperature Range -40 to +60 C (-40 F to +150F)
