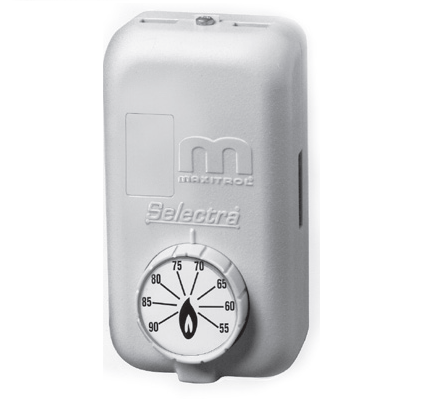

Maxitrol TD244 Space Temperature Selector used for Selectra Series 44 System.
The Selectra Series 44 System is designed primarily for space heating, as components of direct-fired equipment. The system consists of a space temperature selector (two temperature range options available 55º to 90ºF or 40º to 80ºF range) and an air temperature sensor that is used with a mixing tube.
Available Space Temperature Selector Options:
|Model No.||Mounting||Temperature Range|
|TD244A||Wall Mount||40° to 80°F|
|TD244P||Panel Mount||55° to 90°F|
|TD244AP||Panel Mount||40° to 80°F|
|Temperature Range||55 - 90 F|
|Dimensions||2.56” (65) x 4.5” (114) x 1.79” (46)|
