Maxitrol TS114 Discharge Air Temperature Sensors 55-90F

Maxitrol TS114 Discharge Air Temperature Sensors 55-90F
Images for general purposes only. Actual may be different than depicted.
Maxitrol TS114 Discharge Air Temperature Sensors 55-90F Maxitrol TS114 Discharge Air Temperature Sensor for Selectra Series 14 System

Maxitrol TS114 Discharge Air Temperature Sensors 55-90F

SKU: TS114
Rating: (1)
Quantity Price Stock
215
Usually Ships 1 - 2 Weeks
$138.75     /ea
215

Buy in Bulk & Save

Quantity Price
5+ $127.65 /ea
0
$0.00
0
$0.00
0
TS114

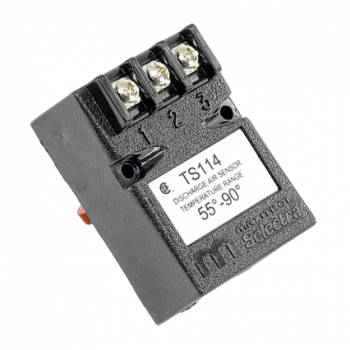

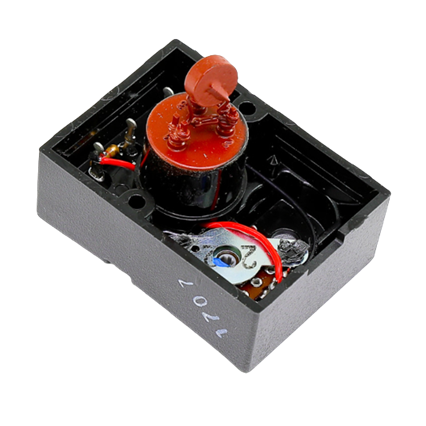

The Maxitrol TS114 is a discharge air temperature sensor that can measure temperature range 55° to 90°F.  Enclosed with black casing and it has 3 terminal screws.  CSA-approved discharge air sensor.

The sensor is installed within a mixing tube housing.  These two are integral components of Selectra Series 14 System for make up air applications.

Available Mixing Tubes in different lengths and applications:


MODEL NUMBER LENGTH SIZE APPLICATION
MT1-9 9" Dual Sensor
MT2-9 Single Sensor
MT1-12 12" Dual Sensor
MT2-12 Single Sensor
MT1-23 23" Dual Sensor
MT2-23 Single Sensor
MT1-28 28" Dual Sensor
MT2-28 Single Sensor
MT1-57 57" Dual Sensor






Temperature Range 55 to 90F
Approval CSA
