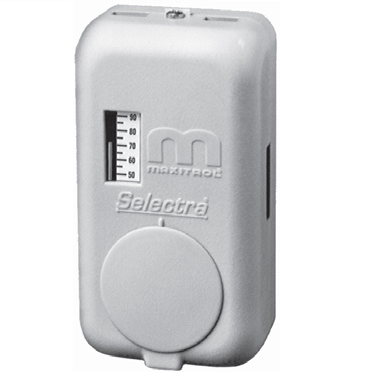

Maxitrol Selectra TS244 Space Temperature Sensor is part of Series 44 System with a temperature range of 55° to 90°F. This can be a substitute to T244 Selectrastat together with space temperature selector. For a lower temperature range, TS244A (40° to 80°F) is available.
The Maxitrol Selectra Series 44 is a system for gas-fired temperature control, space heating, as components of direct-fired equipment. Series 44 System consists of valves, amplifier, Selectrastat, and discharge temperature sensor. If there is no Selectrastat available, a Space Temperature Selector and Space Temperature Sensor can be used.
Note: The temperature range of the selector and sensor should be the same.
Available Maxitrol Temperature Selector:
|Temperature Selector||Mounting||Temperature Range|
|TD244||Wall Mount||40° to 80°F|
|TD244A||Wall Mount||40° to 80°F|
|TD244P||Panel Mount||55° to 90°F|
|TD244AP||Panel Mount||40° to 80°F|
|Temperature Range||55 - 90 F|
|Dimensions||2.56” (65) x 4.5” (114) x 1.53” (39)|
