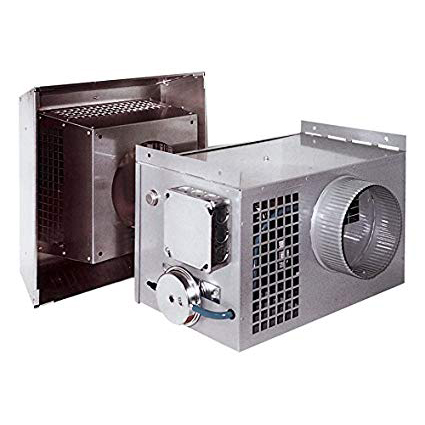

Tjernlund PAI-4 Commercial Combustion Air In-Forcer 8" Inlet/Outlet

Name: Tjernlund PAI-4 Commercial Combustion Air In-Forcer 8" Inlet/Outlet
Brand: Tjernlund
SKU: PAI-4
Price: 997.65 USD
Availability: InStock

Tjernlund PAI-4 Commercial Combustion Air In-Forcer 8" Inlet/Outlet

SKU: PAI-4

Brand:

In Stock 4

Rating:

$997.65 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Tjernlund Commercial Air In-Forcer

The PAI-4 IN-FORCER is a combustion air intake systems designed for use with atmospheric or induced combustion gas and oil heating equipment. Many problems can cause insufficient combustion air, from flame roll-outs, decreased efficiencies, flue gas spillage. The standard system with metal louvers are a significant cause of unregulated outdoor air supply, mechanical room freeze and poor architecture. The IN-FORCER functions as the source of combustion air, eliminating the need for louvered openings. The IN-FORCER assures intake air is supplied by monitoring the air flow with a Fan Proving Switch. The main burner will be interrupted if a malfunction occurs.

Applications Include:

Restaurant kitchens with negative pressure caused by exhaust fans
Interior mechanical rooms with no direct access to an outside wall
Conversions from electric to gas or oil heating appliances
Laundries, dry cleaners, indoor pools etc. with chemically contaminated atmosphere
Confined space installations
Below grade mechanical rooms
Factories where processes cause back drafting of heating equipment

Features:

Capacity 450000 BTU/Hour (Gas Draft Hood), 850000 BTU/Hour (Fan Assisted/Power Burner), 775000 BTU/Hour (Oil Fired Flame Retention)
Air Flow Rate 250 CFM
Size 20 Inch Length x 12 Inch Width x 9-1/2 Inch Height
Mounting Integral Bracket, Wall/Roof
Includes Fan Proving Pressure Switch, Outdoor Air Pre-Filter

Voltage	115V
Maximum Flow	250 CFM
Phases	Single Phase
Frequency	60Hz
Speed	3300 RPM
Wattage	166 Watts
Amperage	1.51 FLA

Following are the Attached files for this product:

Tjernlund Commercial In-Forcer Specifications

Tjernlund Commercial In-Forcer Installation Instructions

Tjernlund Commercial In-Forcer Catalog
